pFLAG CMV 5.1

价格:1500元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

pFLAG CMV 5.1载体质粒基本信息

出品公司: Sigma
载体名称: pFLAG CMV 5.1
质粒类型: 哺乳动物细胞载体
高拷贝/低拷贝: 高拷贝
克隆方法: --
启动子: CMV
载体大小: 4682 bp
5' 测序引物及序列: M13 fwd
3' 测序引物及序列: M13 rev
载体标签: --
载体抗性: 氨苄青霉素
筛选标记: --
克隆菌株: DH5α 等
宿主细胞(系): --
备注: 对于短暂的,细胞质表达的C-末端标记融合蛋白。
产品目录号: --
稳定性: --
组成型/诱导型: --
病毒/非病毒: --

pFLAG CMV 5.1质粒图谱载体图谱和pFLAG CMV 5.1载体序列质粒序列多克隆位点信息

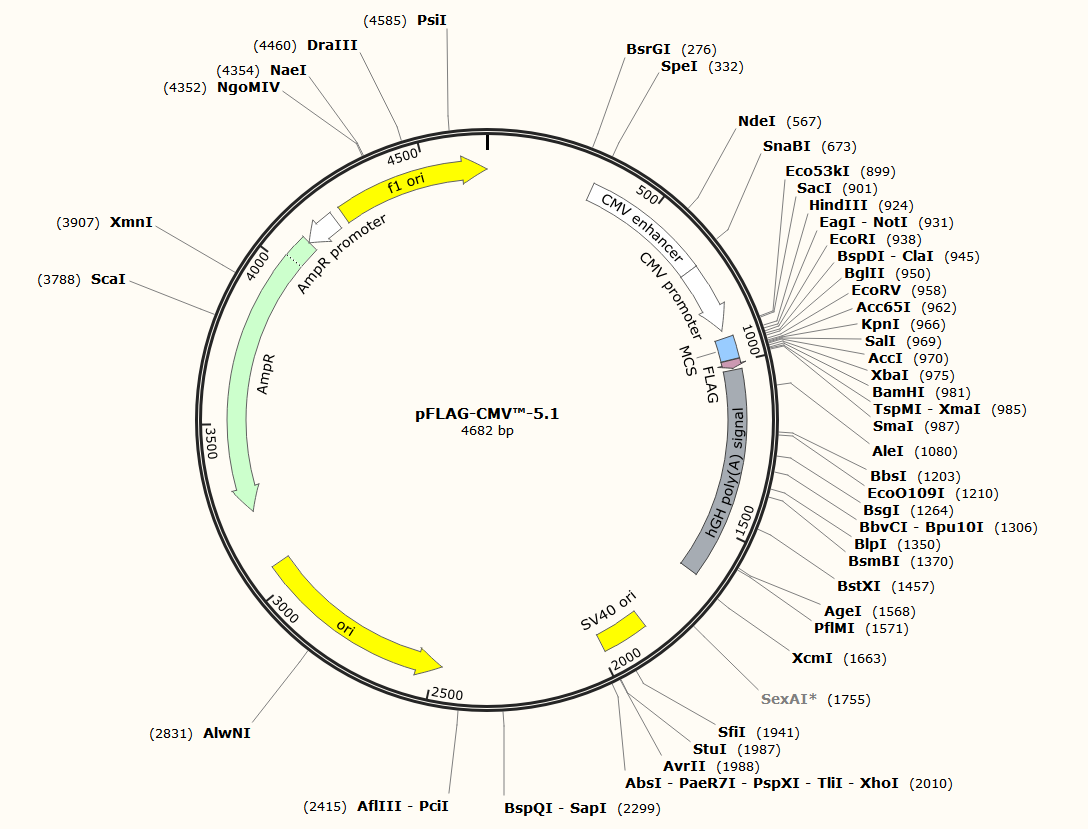

pFLAG CMV 5.1载体图谱

pFLAG CMV 5.1质粒载体简介

pFLAG CMV 5.1质粒序列载体序列

LOCUS       pFLAG-CMV-5.1                4682 bp ds-DNA     circular SYN 23-OCT-2018
DEFINITION  Vector for expression of C-terminally FLAG-tagged proteins in
            mammalian cells.
ACCESSION   .
VERSION     .
KEYWORDS    pFLAG-CMV-5.1
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4682)
  AUTHORS   MilliporeSigma
  TITLE     Direct Submission
  JOURNAL   Exported Wednesday, March 11, 2020 from SnapGene Viewer 3.1.4
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..4682
                     /organism="synthetic DNA construct"
                     /lab_host="Mammalian Cells"
                     /mol_type="other DNA"
     enhancer        318..697
                     /note="CMV enhancer"
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        698..901
                     /note="CMV promoter"
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     misc_feature    924..990
                     /note="MCS"
                     /note="multiple cloning site"
     CDS             993..1016
                     /codon_start=1
                     /product="FLAG epitope tag, followed by an enterokinase
                     cleavage site"
                     /note="FLAG"
                     /translation="DYKDDDDK"
     polyA_signal    1023..1645
                     /note="hGH poly(A) signal"
                     /note="human growth hormone polyadenylation signal"
     rep_origin      1854..1989
                     /note="SV40 ori"
                     /note="SV40 origin of replication"
     rep_origin      complement(2476..3064)
                     /direction=LEFT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(3235..4095)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /note="AmpR"
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(4096..4200)
                     /gene="bla"
                     /note="AmpR promoter"
     rep_origin      4227..4682
                     /direction=RIGHT
                     /note="f1 ori"
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
ORIGIN
        1 ccattcgcca ttcaggctgc gcaactgttg ggaagggcga tcggtgcggg cctcttcgct
       61 attacgccag ctggcgaaag ggggatgtgc tgcaaggcga ttaagttggg taacgccagg
      121 gttttcccag tcacgacgtt gtaaaacgac ggccagtgcc aagctgatct atacattgaa
      181 tcaatattgg caattagcca tattagtcat tggttatata gcataaatca atattggcta
      241 ttggccattg catacgttgt atctatatca taatatgtac atttatattg gctcatgtcc
      301 aatatgaccg ccatgttgac attgattatt gactagttat taatagtaat caattacggg
      361 gtcattagtt catagcccat atatggagtt ccgcgttaca taacttacgg taaatggccc
      421 gcctggctga ccgcccaacg acccccgccc attgacgtca ataatgacgt atgttcccat
      481 agtaacgcca atagggactt tccattgacg tcaatgggtg gagtatttac ggtaaactgc
      541 ccacttggca gtacatcaag tgtatcatat gccaagtccg ccccctattg acgtcaatga
      601 cggtaaatgg cccgcctggc attatgccca gtacatgacc ttacgggact ttcctacttg
      661 gcagtacatc tacgtattag tcatcgctat taccatggtg atgcggtttt ggcagtacac
      721 caatgggcgt ggatagcggt ttgactcacg gggatttcca agtctccacc ccattgacgt
      781 caatgggagt ttgttttggc accaaaatca acgggacttt ccaaaatgtc gtaataaccc
      841 cgccccgttg acgcaaatgg gcggtaggcg tgtacggtgg gaggtctata taagcagagc
      901 tcgtttagtg aaccgtcaga attaagcttg cggccgcgaa ttcatcgata gatctgatat
      961 cggtaccagt cgactctaga ggatcccggg ctgattacaa ggacgacgat gacaagtagg
     1021 ttgggtggca tccctgtgac ccctccccag tgcctctcct ggccctggaa gttgccactc
     1081 cagtgcccac cagccttgtc ctaataaaat taagttgcat cattttgtct gactaggtgt
     1141 ccttctataa tattatgggg tggagggggg tggtatggag caaggggcaa gttgggaaga
     1201 caacctgtag ggcctgcggg gtctattggg aaccaagctg gagtgcagtg gcacaatctt
     1261 ggctcactgc aatctccgcc tcctgggttc aagcgattct cctgcctcag cctcccgagt
     1321 tgttgggatt ccaggcatgc atgaccaggc tcagctaatt tttgtttttt tggtagagac
     1381 ggggtttcac catattggcc aggctggtct ccaactccta atctcaggtg atctacccac
     1441 cttggcctcc caaattgctg ggattacagg cgtgaaccac tgctcccttc cctgtccttc
     1501 tgattttaaa ataactatac cagcaggagg acgtccagac acagcatagg ctacctggcc
     1561 atgcccaacc ggtgggacat ttgagttgct tgcttggcac tgtcctctca tgcgttgggt
     1621 ccactcagta gatgcctgtt gaattgggta cgcggccagc ttggctgtgg aatgtgtgtc
     1681 agttagggtg tggaaagtcc ccaggctccc cagcaggcag aagtatgcaa agcatgcatc
     1741 tcaattagtc agcaaccagg tgtggaaagt ccccaggctc cccagcaggc agaagtatgc
     1801 aaagcatgca tctcaattag tcagcaacca tagtcccgcc cctaactccg cccatcccgc
     1861 ccctaactcc gcccagttcc gcccattctc cgccccatgg ctgactaatt ttttttattt
     1921 atgcagaggc cgaggccgcc tcggcctctg agctattcca gaagtagtga ggaggctttt
     1981 ttggaggcct aggcttttgc aaaaagctcc tcgaggaact gaaaaaccag aaagttaatt
     2041 ccctatagtg agtcgtatta aattcgtaat catgtcatag ctgtttcctg tgtgaaattg
     2101 ttatccgctc acaattccac acaacatacg agccggaagc ataaagtgta aagcctgggg
     2161 tgcctaatga gtgagctaac tcacattaat tgcgttgcgc tcactgcccg ctttccagtc
     2221 gggaaacctg tcgtgccagc tgcattaatg aatcggccaa cgcgcgggga gaggcggttt
     2281 gcgtattggg cgctcttccg cttcctcgct cactgactcg ctgcgctcgg tcgttcggct
     2341 gcggcgagcg gtatcagctc actcaaaggc ggtaatacgg ttatccacag aatcagggga
     2401 taacgcagga aagaacatgt gagcaaaagg ccagcaaaag gccaggaacc gtaaaaaggc
     2461 cgcgttgctg gcgtttttcc ataggctccg cccccctgac gagcatcaca aaaatcgacg
     2521 ctcaagtcag aggtggcgaa acccgacagg actataaaga taccaggcgt ttccccctgg
     2581 aagctccctc gtgcgctctc ctgttccgac cctgccgctt accggatacc tgtccgcctt
     2641 tctcccttcg ggaagcgtgg cgctttctca tagctcacgc tgtaggtatc tcagttcggt
     2701 gtaggtcgtt cgctccaagc tgggctgtgt gcacgaaccc cccgttcagc ccgaccgctg
     2761 cgccttatcc ggtaactatc gtcttgagtc caacccggta agacacgact tatcgccact
     2821 ggcagcagcc actggtaaca ggattagcag agcgaggtat gtaggcggtg ctacagagtt
     2881 cttgaagtgg tggcctaact acggctacac tagaagaaca gtatttggta tctgcgctct
     2941 gctgaagcca gttaccttcg gaaaaagagt tggtagctct tgatccggca aacaaaccac
     3001 cgctggtagc ggtggttttt ttgtttgcaa gcagcagatt acgcgcagaa aaaaaggatc
     3061 tcaagaagat cctttgatct tttctacggg gtctgacgct cagtggaacg aaaactcacg
     3121 ttaagggatt ttggtcatga gattatcaaa aaggatcttc acctagatcc ttttaaatta
     3181 aaaatgaagt tttaaatcaa tctaaagtat atatgagtaa acttggtctg acagttacca
     3241 atgcttaatc agtgaggcac ctatctcagc gatctgtcta tttcgttcat ccatagttgc
     3301 ctgactcccc gtcgtgtaga taactacgat acgggagggc ttaccatctg gccccagtgc
     3361 tgcaatgata ccgcgagacc cacgctcacc ggctccagat ttatcagcaa taaaccagcc
     3421 agccggaagg gccgagcgca gaagtggtcc tgcaacttta tccgcctcca tccagtctat
     3481 taattgttgc cgggaagcta gagtaagtag ttcgccagtt aatagtttgc gcaacgttgt
     3541 tgccattgct acaggcatcg tggtgtcacg ctcgtcgttt ggtatggctt cattcagctc
     3601 cggttcccaa cgatcaaggc gagttacatg atcccccatg ttgtgcaaaa aagcggttag
     3661 ctccttcggt cctccgatcg ttgtcagaag taagttggcc gcagtgttat cactcatggt
     3721 tatggcagca ctgcataatt ctcttactgt catgccatcc gtaagatgct tttctgtgac
     3781 tggtgagtac tcaaccaagt cattctgaga atagtgtatg cggcgaccga gttgctcttg
     3841 cccggcgtca atacgggata ataccgcgcc acatagcaga actttaaaag tgctcatcat
     3901 tggaaaacgt tcttcggggc gaaaactctc aaggatctta ccgctgttga gatccagttc
     3961 gatgtaaccc actcgtgcac ccaactgatc ttcagcatct tttactttca ccagcgtttc
     4021 tgggtgagca aaaacaggaa ggcaaaatgc cgcaaaaaag ggaataaggg cgacacggaa
     4081 atgttgaata ctcatactct tcctttttca atattattga agcatttatc agggttattg
     4141 tctcatgagc ggatacatat ttgaatgtat ttagaaaaat aaacaaatag gggttccgcg
     4201 cacatttccc cgaaaagtgc cacctgacgc gccctgtagc ggcgcattaa gcgcggcggg
     4261 tgtggtggtt acgcgcagcg tgaccgctac acttgccagc gccctagcgc ccgctccttt
     4321 cgctttcttc ccttcctttc tcgccacgtt cgccggcttt ccccgtcaag ctctaaatcg
     4381 ggggctccct ttagggttcc gatttagtgc tttacggcac ctcgacccca aaaaacttga
     4441 ttagggtgat ggttcacgta gtgggccatc gccctgatag acggtttttc gccctttgac
     4501 gttggagtcc acgttcttta atagtggact cttgttccaa actggaacaa cactcaaccc
     4561 tatctcggtc tattcttttg atttataagg gattttgccg atttcggcct attggttaaa
     4621 aaatgagctg atttaacaaa aatttaacgc gaattttaac aaaatattaa cgcttacaat
     4681 tt
//

pFLAG CMV 5.1载体图谱质粒图谱pdf版和pFLAG CMV 5.1载体序列质粒序列等相关资料下载

pFLAG CMV 5.1质粒载体应用举例
